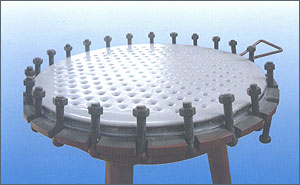

P(W)-1/2 F40 roller coating disc-type condenser

*Condenser conncetion dimension:

	P(W)-0.5 type	P(W)-1 type	P(W)-2 type
φ	400mm	600mm	700mm
R	220mm	220mm	250mm
D	Φ25mm	φ25mm	φ30mm
A	medium entry/exit DN80×0.6	medium entry/exit DN100×0.6	medium entry/exit DN125×0.6
B	inlet/outlet pipe	inlet/outlet pipe DN32×1.0	inlet/outlet pipe DN40×1.0

*Parameters P(W)1 type:

heat exchange area	Flake number of middle layer	Weight	Height	External diameters
M2	flake	KG	H(MM)	φ(MM)
5	4	550	1010	960
6	5	630	1110	960
7	6	710	1210	960
8	7	780	1310	960
9	8	860	1410	960
10	9	940	1510	960
11	10	1020	1610	960
12	11	1140	1650	960
13	12	1220	1740	960
14	13	1300	1830	960
15	14	1380	1920	960

*Parameters P(W)-2 type:

heat exchange area	Flake number of middle layer	Weight	Height	External diameters
M2	flake	KG	H(MM)	φ(MM)
10	4	751	1120	1150
12	5	878	1230	1150
14	6	1005	1340	1150
16	7	1132	1450	1150
18	8	1245	1560	1150
20	9	1372	1670	1150
22	10	1500	1780	1150
*Max. area: 36m2
