Fluoroplastic lined steel pipe diaphragm valve

fluoroplastic lined steel pipe fittings

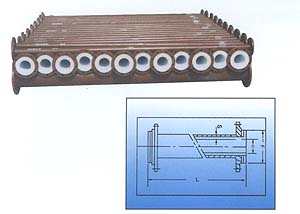

Nominal diameter DN	Internal diameter of lining d	Wall thickness of lining s	External diameter of revers of lining F	Max length of lined pipe L
25	21	2	≥50	2000
40	36	2	≥70	2000
50	47	2	≥85	2000
65	59	2.5	≥95	2000
80	76	2.5	≥120	2000
100	96	3	≥140	2000
125	119	3	≥190	2000
150	143	3.5	≥210	2000
200	198	4	≥270	2000

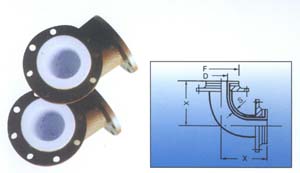

Nominal diameter DN	Internal diameter of lining d	Wall thickness of lining s	External diameter of revers of lining F	length of elbow X
25	25	3	65	90±1
40	39	3	85	100±1
50	49	3	100	109±1
65	64	3	125	139±1
80	74	5	135	159±1
100	94	5	155	170±1
125	120	7	190	185±2
150	145	7	210	200±2
200	190	7	270	210±2

Nominal diameter DN	Internal diameter of lining d	Wall thickness of lining s	External diameter of revers of lining F	length of elbow X
25	21	3	50	80±1
40	40	3	70	100±1
50	45	4	85	109±1
65	58	4	95	125±1
80	65	4	120	144±1
100	90	5	140	150±1
125	110	7	190	180±2
150	135	7	210	250±3
200	190	7	270	330±3
